    MAC Valves 55B-14PE-611JB

    170.00

    1 in stock

    1 in stock

    SKU: 26219523 Category: Tag:

    Product description

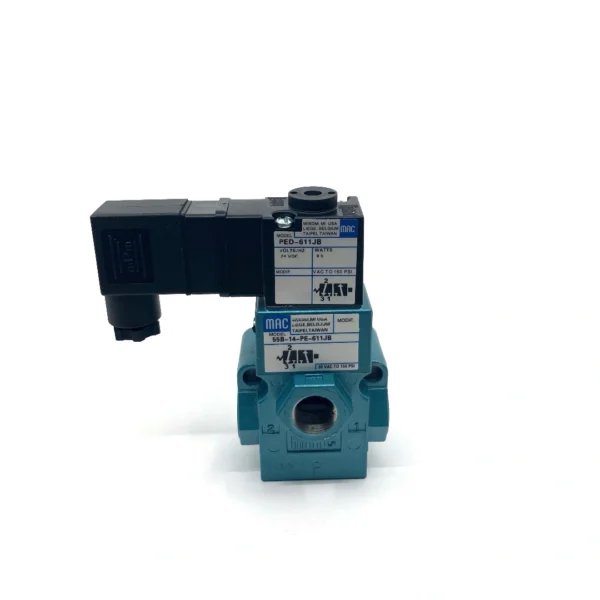

    MAC Valves 55B-14PE-611JB – 3/2-Way Solenoid Piloted Valve

    The MAC Valves 55B-14PE-611JB from the MAC Valves 55 Series is a high-quality, electrically actuated pneumatic valve engineered for demanding industrial applications. Its robust design, versatile configurations, and advanced features make it an excellent choice for systems requiring precise control of pneumatic flows.

    Key Features MAC 55B-14-PE-611JB:

    Functionality:

      • 3/2-way Normally Closed (NC) design.
      • External pilot air with interchangeable external/internal pilot options.
      • Non-locking recessed manual operator for quick operation.
      • Monostable operation with pneumatic/steel mechanical spring reset.

    Performance:

      • Vacuum to 150 psi pressure range.
      • Compatible with compressed air, inert gases, or vacuum input mediums.
      • Patented MACSOLENOID with a non-burnout feature on AC service.
      • Balanced spool design, unaffected by back pressure or inlet restrictions.

    Efficiency and Maintenance:

      • Large checked accumulator for consistent shifting.
      • Operates without lubrication; optional medium aniline point lubricant can be used.
      • Rapid response and high cycle rate.

    Connectivity and Installation:

      • Rectangular plug-in DIN 43650 connector for secure connections.
      • 3/8″ BSPP threaded female pneumatic ports for both input and exhaust.
      • Individual in-line mounting for easy integration.

    Technical Specifications:

    • Voltage: 24 VDC.
    • Power Consumption: 8.5 W.
    • Pressure Range: Vacuum to 150 psi.
    • Dimensions: H113mm x W46mm x D105mm.
    • Ambient Temperature: -18°C to +50°C.
    • Compliant Standards: IEC 615048, IEC 615611, ISO 13849, REACH.

    Benefits of the 55 Series:

    • Enhanced Durability: Balanced spool design minimizes wear and tear.
    • Versatility: Can be converted to 2-way operation by plugging a port.
    • Customizable Options: Multiple manual operators and low-wattage solenoid options available.
    • Consistent Operation: Reliable shifting through a large checked accumulator and spring return system.

    Applications:

    The 55B-14-PE-611JB is ideal for industrial automation, pneumatic control systems, and applications requiring precise actuation under diverse pressure and environmental conditions.

    Learn More About MAC Valves 55B-14-PE-611JB

    For more detailed specifications, download the datasheet or visit the official MAC website.

    Additional information

    Weight 0.4 kg
    Dimensions 11.3 × 4.6 × 10.5 cm
