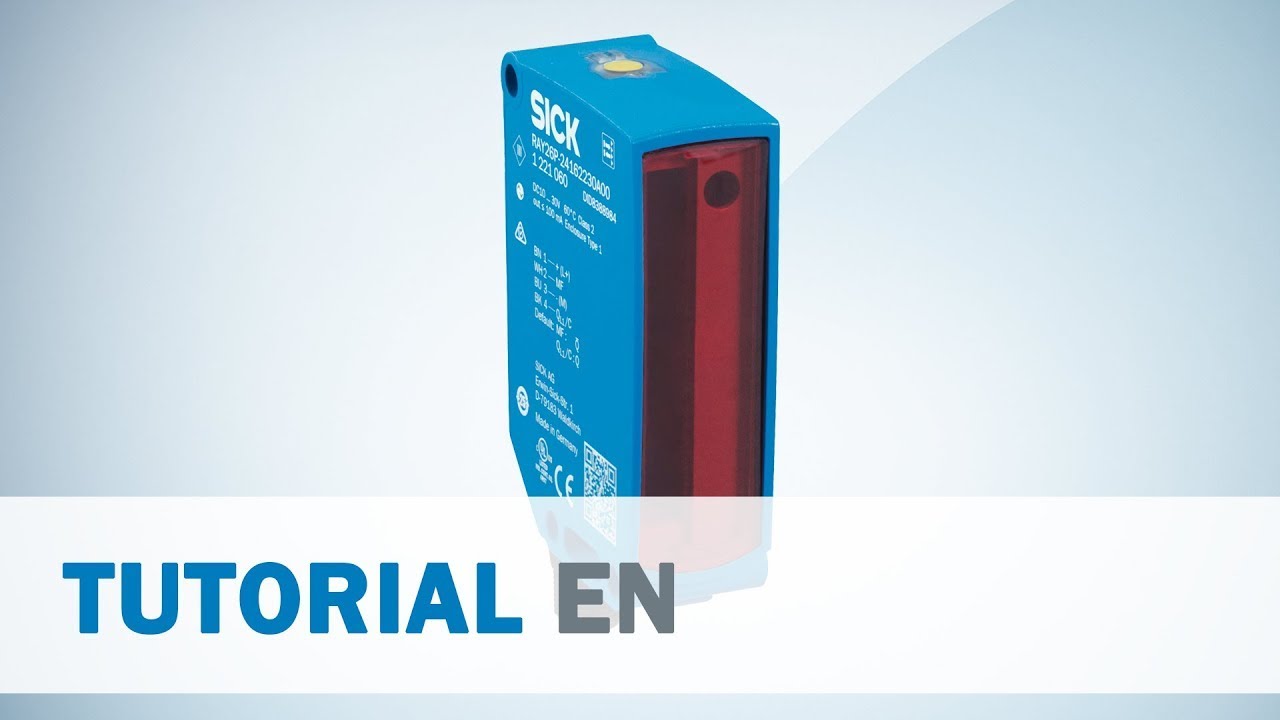

RAY26 Reflex Array Photoelectric Sensor: RAY26P-34162A30A00
Overview
The RAY26P-34162A30A00 is part of the RAY26 series, a line of reflex array photoelectric sensors designed by SICK for high-precision object detection in industrial automation applications. With advanced features and reliable performance, this sensor is ideal for complex object detection tasks, offering exceptional range, sensitivity, and durability.
Key Specifications of RAY26P-34162A30A00
Sensor Type
- Type: Reflex array photoelectric sensor
- Measuring Principle: Reflection-based with a highly sensitive detection array.
Electrical Features
- Supply Voltage: 10 V to 30 V DC
- Output Type: NPN, PNP or Relay output depending on configuration
- Current Consumption: Low current draw for efficient power use
Sensing Range
- Max Sensing Distance: Up to 25 meters depending on the target type and environmental conditions.
- Operating Distance: Typically 5 to 25 meters for reliable detection over long distances.
Performance Features
- Response Time: Fast switching time of approximately 2 ms for rapid object detection.
- Resolution: Capable of detecting objects down to 1 mm in size, making it suitable for fine resolution detection.
- Repeatability: Excellent repeatability ensures consistent detection performance.
- Light Source: Infrared LED for reliable performance in a variety of lighting conditions.
Environmental Features
- Operating Temperature: -25 °C to +55 °C, making it ideal for both cold and hot industrial environments.
- Protection Rating: IP67, ensuring the sensor is protected against dust, dirt, and water ingress, perfect for harsh environments.
Physical Features
- Housing Material: Robust plastic housing designed to withstand tough industrial conditions.
- Mounting Style: Easy to install with a variety of mounting options for flexible integration in different setups.
- Connection: 4-pin M12 connector for simple and secure wiring.
Features and Benefits
- Long Sensing Range: The RAY26P-34162A30A00 offers an extended sensing range of up to 25 meters, providing excellent coverage for larger areas or longer distances.
- High Sensitivity: Capable of detecting even the smallest objects with high precision (down to 1 mm). This makes it ideal for use in automated inspection, sorting, and material handling applications.
- Reliable Performance: The reflex array technology ensures that even challenging, reflective, or transparent objects are detected with minimal interference.
- Fast Response Time: With a response time of just 2 ms, this sensor ensures rapid detection, suitable for high-speed industrial processes.
- Versatile Outputs: Multiple output configurations (NPN, PNP, or Relay) allow for seamless integration into various systems and industrial control setups.
- Rugged Design: The IP67 protection rating ensures reliable operation in demanding environments where dust, dirt, and moisture are prevalent.
Applications of RAY26P-34162A30A00
The RAY26P-34162A30A00 is ideal for a wide range of industrial applications, including:
- Material Handling: Detecting objects on conveyors or sorting systems.
- Automated Inspection: Precise detection of parts or components in quality control processes.
- Packaging Lines: Ensuring correct positioning of products for packaging or labeling.
- Robotics: Object detection for robotic arms or automated machines.
- Logistics & Warehousing: Monitoring the position and presence of items in storage or during transport.
Installation and Maintenance
- Easy Installation: The sensor comes with a user-friendly M12 connector and adjustable mounting options, making it quick and simple to install in any environment.
- Maintenance: With an IP67 rating, the RAY26P-34162A30A00 is resistant to dust, dirt, and water, minimizing maintenance needs. It’s recommended to clean the lens periodically and inspect the sensor for optimal performance.
Why Choose RAY26P-34162A30A00?
The RAY26P-34162A30A00 is engineered for high-precision, reliable detection in industrial automation systems. Its long range, fast response time, and versatility make it an excellent choice for applications that require accurate and consistent object detection in a variety of environments.
